National Item Identification Number

00-734-8743
007348743
2520-00-734-8743
2520007348743

National Stock Number

Item Name

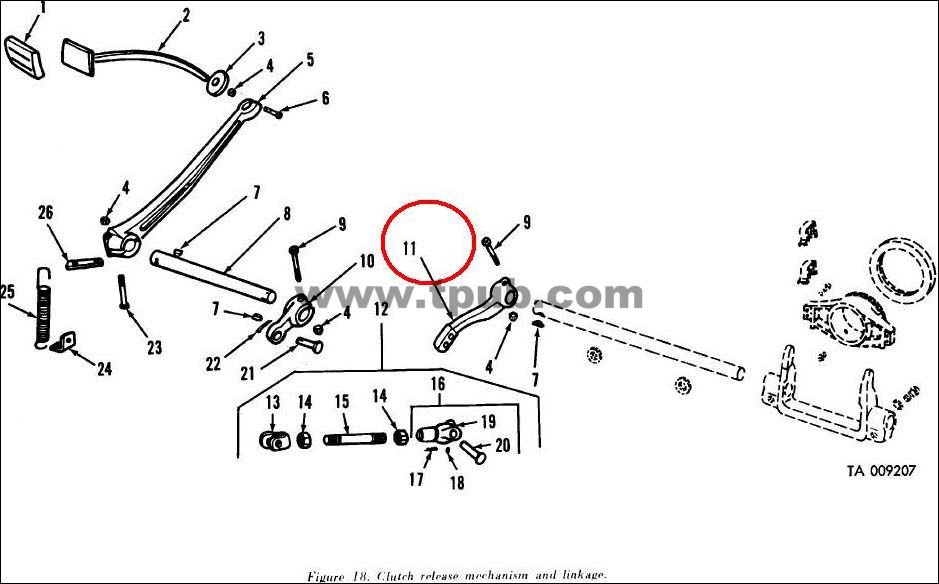

LEVER,REMOTE CONTROL

Federal Supply Class

2520

Description

A rigid item usually in the form of an arm of various shapes and cross sections, containing two or more holes so spaced that one serves as a pivot with or without hubs and must have a definite means for securing to a shaft (such as threaded hole for set-screw, keyway(s), splines, serrations or some clamping device). The other hole(s) connect(s) to CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; or CLEVIS, ROD END; to provide transmission of movement to other parts of the mechanism. See also BELL CRANK. For manually operated items see LEVER, MANUAL CONTROL.

Commercial and Government Entity Code (Supplier Data)

---

19207

---

---

NSN (National Stock Number) 2520-00-734-8743, 2520007348743 NIIN (National Identification Number) 00-734-8743, 007348743

Part Numbers (Reference Numbers)

KC6144
7348743

Required Categories

MATERIAL
MATERIAL DOCUMENT AND CLASSIFICATION
OVERALL WIDTH
CENTER TO CENTER

Required Description

STEEL
SAE 1030 ASSN STD 1ST MATERIAL RESPONSE OR
SAE 1035 ASSN STD 2ND MATERIA
