National Item Identification Number

01-112-8366
011128366
2520-01-112-8366
2520011128366

National Stock Number

Item Name

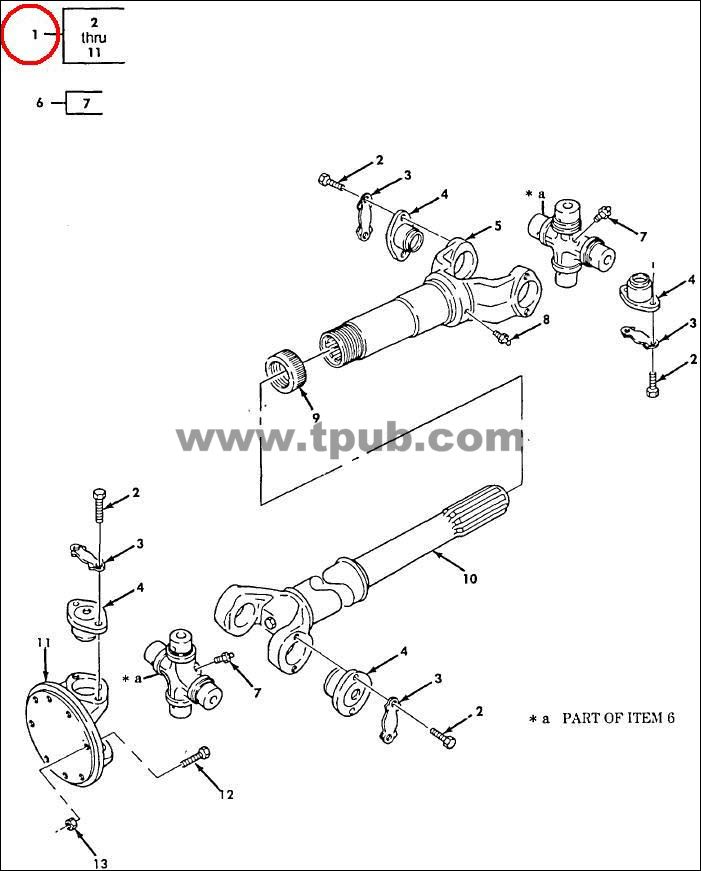

DRIVE SHAFT ASSEMBLY,CONSTANT VELOCITY,VEHICULAR

Federal Supply Class

2520

Referenced on: http://trucks5ton.tpub.com//TM-9-2320-272-24P-2/TM-9-2320-272-24P-20851.htm

Description

An item designed to permit a greater degree of angle between two sections of a drive shaft, while transmitting rotary motion from the engine/transaxle assembly to the wheel hubs. The angle is split between the two joints working in a counterbalancing phase with input speed and output speed being identical. Includes items such as outboard and inboard joints, housing, protective bellows, shafts, mounting hardware and the like. The outboard universal joints turns with the wheel around a fixed center, while the inboard joint telescopes and turns at an angle sufficient to allow the required movement of the vehicle's suspension system. Excludes SHAFT, AXLE, AUTOMOTIVE; UNIVERSAL JOINT; UNIVERSAL JOINT, GEARED and PROPELLER SHAFT.

Commercial and Government Entity Code (Supplier Data)

---

19207

---

---

95019

---

DANA CORP
SPICER TRANSMISSION DIV
5428 N NATIONAL DR
KNOXVILLE
TN
37914

---

95019

---

DANA CORP
SPICER TRANSMISSION DIV
5428 N NATIONAL DR
KNOXVILLE
TN
37914

---

NSN (National Stock Number) 2520-01-112-8366, 2520011128366 NIIN (National Identification Number) 01-112-8366, 011128366

Part Numbers (Reference Numbers)

11669146
908929-0400
912257-0416

Required Categories

SPECIAL FEATURES
SPEC/STD CONTROLLING DATA
MANUFACTURERS CODE
MFR SOURCE CONT

Required Description

SHAFT ASSY MIN. EXTENDED LGTH 23.750 IN.;MAX COMPRESSED LGTH 20.250 IN.;8 MTG HO
